Your car’s vents are blowing warm, sticky air on a scorching afternoon, and you’re wondering if the AC is on its last legs. Before you drop hundreds at a shop, here’s some good news: you can diagnose most cooling problems yourself. That’s where air conditioning gauges come in. These handy tools let you read the pressure inside your system and figure out exactly what’s wrong.
In this guide, you’ll learn how to use air conditioning gauges set safely, take accurate readings, and understand what those numbers mean. We’ll walk through the gear you need, the exact steps to follow, and a few pro tips most beginners miss. By the end, you’ll confidently check your system’s health like a seasoned tech.

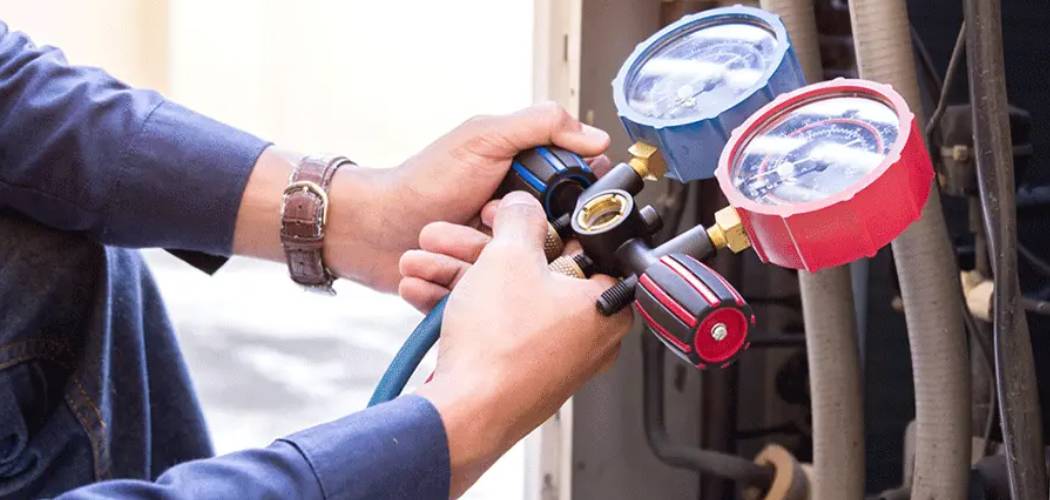

What Are Air Conditioning Gauges?
Air conditioning gauges are diagnostic tools that measure the pressure of refrigerant inside an HVAC or automotive AC system. They usually come as a manifold gauge set, with two dials connected by hoses to the low-side and high-side ports. The blue gauge reads low pressure, the red gauge reads high pressure, and the center hose handles charging or recovery. Mechanics rely on them to spot leaks, overcharges, and failing components before problems get worse.
What You’ll Need
Gather these items before you start. Having everything within reach keeps the job smooth and safe.
- A quality manifold gauge set (blue, red, and yellow hoses)
- Safety glasses and gloves
- The correct refrigerant for your system (often R-134a)
- A refrigerant thermometer or infrared temp gun
- Your vehicle or HVAC system’s service manual
- A clean rag for wiping ports
- Quick-connect coupler adapters, if needed
- A pressure/temperature chart for reference
Double-check which refrigerant your system uses before buying anything. Mixing types can damage components and throw off your readings completely.
Step-by-Step Guide on How to Use Air Conditioning Gauges
Step 1: Read Your Manual and Gear Up
Start by finding the recommended pressure ranges for your specific system. Every make and model has its own target numbers, so don’t guess. Grab your service manual and note the ideal low-side and high-side readings for the current temperature. Then put on your safety glasses and gloves, since refrigerant can cause frostbite if it touches your skin. A quick review now saves you from misreading results later. Skipping this step is the most common rookie mistake.
Step 2: Locate the Service Ports

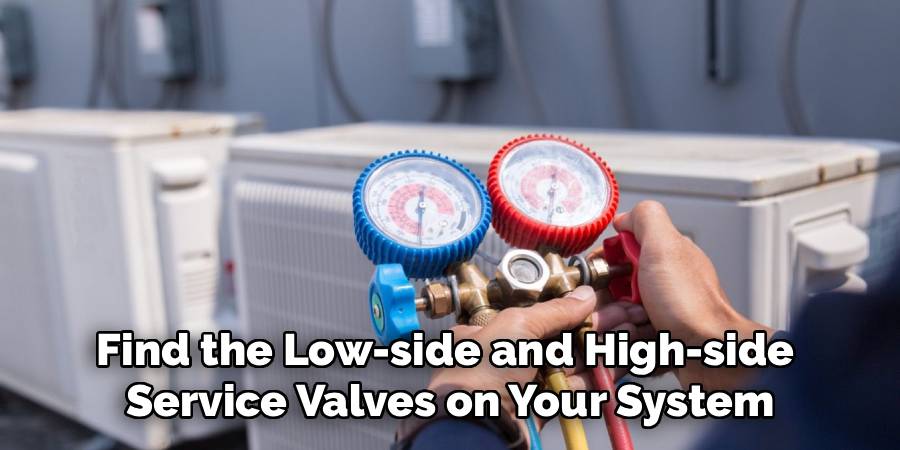

Find the low-side and high-side service valves on your system. The low-side port sits on the larger diameter line, usually between the compressor and evaporator. The high-side port connects to the smaller line running from the compressor to the condenser. These fittings are different sizes on purpose, so you can’t accidentally swap them. Wipe each port clean with your rag before connecting anything. Dirt inside the coupler can cause leaks or false readings.
Step 3: Connect the Manifold Gauge Set
Attach the blue hose to the low-side port and the red hose to the high-side port. Push each quick-connect coupler on firmly until it clicks and locks into place. Keep both valves on the manifold closed for now, since you only want to read pressure at this stage. Give each connection a gentle tug to confirm it’s secure. A loose fitting will hiss and leak refrigerant, which is both wasteful and dangerous. Take your time and make every seal tight.
Step 4: Take Your Static Pressure Reading
With the engine and AC off, check both gauges. This is your static reading, and both sides should show roughly equal pressure. Compare that number to a pressure/temperature chart for the current ambient temperature. If the reading sits far below the expected value, you likely have a low refrigerant charge or a leak. A reading near zero usually means the system is empty. This first snapshot tells you a lot before anything even runs.
Step 5: Start the Engine and Run the AC
Turn on the engine and set the air conditioning to its coldest, highest fan setting. Let it run for a few minutes so the system stabilizes. Watch how the needles move once the compressor kicks in. The low-side pressure should drop while the high-side pressure climbs. If the compressor cycles on and off rapidly, that often points to a low refrigerant charge. Keep the area clear of the belts and fans while the engine runs.
Step 6: Interpret the Low-Side and High-Side Readings

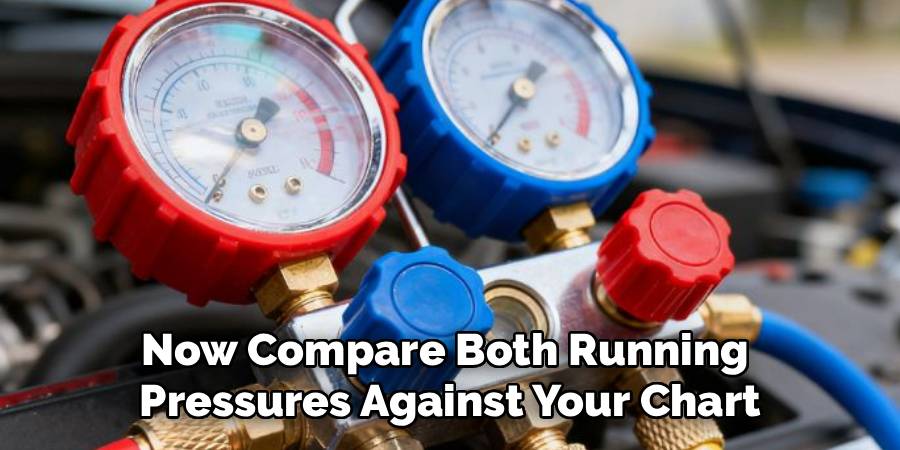

Now compare both running pressures against your chart. Healthy air conditioning gauges typically show low-side pressure around 25–45 psi and high-side around 200–350 psi, depending on conditions. Low readings on both sides suggest an undercharge or a leak. High readings on both sides can mean an overcharge, air in the system, or a blocked condenser. Odd patterns, like high low-side and low high-side, often point to a struggling compressor. Match your numbers to the chart to pinpoint the issue.
Step 7: Add Refrigerant if Needed
If your readings confirm an undercharge, you can add refrigerant through the low-side. Connect the yellow center hose to your refrigerant can, then briefly open the can’s valve to purge air from the hose. Open only the low-side manifold valve while the engine runs, and add small amounts at a time. Watch the gauges closely between bursts, because overcharging is easy and harmful. Never add refrigerant through the high-side while the system runs. Patience here protects your compressor and your wallet.
Step 8: Monitor Temperature and Fine-Tune
Stick a thermometer in the center vent while you work. A well-charged system usually blows air around 40–50°F. As you add small doses of refrigerant, watch both the vent temperature and the pressure readings settle into range. Stop as soon as you hit the target numbers from your chart. Chasing colder air by overfilling only raises pressure and risks damage. Balanced readings plus cold vents mean you’ve nailed the charge.
Step 9: Disconnect the Gauges Safely
Once everything looks good, close both manifold valves and turn off the engine. Remove the high-side hose first, then the low-side, to avoid trapping pressurized refrigerant. Do this slowly, since a quick pull can spray cold refrigerant onto your hands. Replace the plastic caps on both service valves to keep dirt out. Store your gauge set clean and coiled so the hoses last longer. A tidy disconnect wraps up the job the right way.
Tips for Best Results
Want to read your system like a pro? These habits go beyond the basic steps.
- Always work in the shade on a moderate day. Extreme heat or cold skews your pressure readings and makes charts less accurate. A stable ambient temperature gives you the cleanest baseline.
- Purge your hoses before adding refrigerant. Trapped air inside the yellow hose contaminates the system and throws off your numbers. A quick two-second purge keeps everything clean.
- Add refrigerant in small bursts, not long blasts. It’s easy to overcharge and nearly impossible to remove refrigerant without recovery gear. Go slow and check between each dose.
- Keep a pressure/temperature chart handy. Memorizing numbers is tough because targets shift with the weather. A laminated chart in your toolbox saves guesswork every time.
- Inspect your couplers and O-rings regularly. Worn seals cause slow leaks that waste refrigerant and ruin readings. Replacing a cheap O-ring beats chasing a phantom problem.
FAQ Section
What Do the Colors on the Gauges Mean?
The blue gauge always measures the low-side pressure, and the red gauge reads the high-side pressure. The yellow hose in the center connects to your refrigerant source or a recovery machine. This color coding is standard across most manifold gauge sets, which makes them easy to learn. Just remember: blue for low, red for high, yellow for filling.
Can I Use AC Gauges on Any System?
Most gauge sets work on common automotive systems, but you need the right couplers and refrigerant type. Older systems used R-12, while many newer cars use R-134a or R-1234yf, and each needs matching fittings. Home HVAC systems often require different adapters and pressure ranges entirely. Always confirm compatibility with your service manual before connecting anything.
Is It Safe to Add Refrigerant Myself?
Yes, adding refrigerant is safe when you wear gloves and safety glasses and follow the steps carefully. Refrigerant is cold enough to cause frostbite and should never touch bare skin or eyes. Work in a ventilated space and add small amounts through the low-side only. If you’re unsure about your readings, it’s smart to consult a professional.
Why Are Both My Pressures Reading High?
High pressure on both the low-side and high-side usually points to an overcharge or air trapped in the system. A dirty or blocked condenser and a failing cooling fan can also cause it. Start by checking that your condenser is clean and the fan runs properly. If those look fine, you may have added too much refrigerant.
How Often Should I Check My AC Pressure?
Checking once a year before summer is a solid routine for most drivers. If your air stops blowing cold or you hear the compressor cycling oddly, test it right away. Regular checks catch small leaks before they empty the system completely. Consistent monitoring keeps your cooling strong and your repairs cheap.
Conclusion
Diagnosing a weak AC no longer means an expensive trip to the shop or endless guessing. With a little practice, air conditioning gauges turn a frustrating problem into a repair you can handle in your driveway. Just remember the essentials: check your chart, connect the right ports, read both pressures, and add refrigerant slowly. Don’t worry if your first attempt feels clumsy, because it gets easier every time. If you haven’t picked up a gauge set yet, check out our recommended picks above. Browse our other DIY and tool guides to keep every project running cool.
